Swan Bathroom Sink Transfer Machine
8 STATIONS HYDRAULIC TRANSFER MACHINE

The machines can be revised according to customer requests and needs.

  • • NUMBER OF LATHE UNITS: 9
  • • NUMBER OF THREADING UNITS: 6
  • • CHIP EXTRACTION CONVEYOR: YES
  • • NUMBER OF SLIDE LATHE UNITS: 6
  • • PROCESSING TIME: 10-18 sec
  • • NUMBER OF SLIDING DENTAL UNITS: 2
  • • ENGINE POWER: 65 kW
  • • MACHINE WEIGHT: 6 TONS
  • • HYDRAULIC PRESSURE: 60 BAR
  • • GEAR PRESSURE: 40 BAR
  • • JAW PRESSURE: 40 BAR
  • • 7 JAW PRESSURE: 40 BAR
Floater Transfer Machine
8 STATIONS HYDRAULIC TRANSFER MACHINE

The machines can be revised according to customer requests and needs.

  • • NUMBER OF LATHE UNITS: 8
  • • NUMBER OF THREADING UNITS: 3
  • • SAW (SPLITTING) NUMBER OF UNITS: 1
  • • NUMBER OF SLIDE LATHE UNITS: 1
  • • CHIP EXTRACTION CONVEYOR: YES
  • • NUMBER OF SLIDING DENTAL UNITS: 1
  • • CHANNEL OPENING UNIT: 1
  • • ENGINE POWER: 37 kW
  • • PROCESSING TIME: 6 sec
  • • MACHINE WEIGHT: 5 TONS
  • • HYDRAULIC PRESSURE: 60 BAR
  • • GEAR PRESSURE: 40 BAR
  • • JAW PRESSURE: 40 BAR
  • • 7 JAW PRESSURE: 40 BAR
Classic Bath Transfer Machine
8 STATIONS HYDRAULIC TRANSFER MACHINE

The machines can be revised according to customer requests and needs.

  • • NUMBER OF LATHE UNITS: 8
  • • NUMBER OF THREADING UNITS: 7
  • • CHIP EXTRACTION CONVEYOR: YES
  • • ENGINE POWER: 42 kW
  • • PROCESSING TIME: 8 sec
  • • MACHINE WEIGHT: 5 TONS
  • • HYDRAULIC PRESSURE: 60 BAR
  • • GEAR PRESSURE: 40 BAR
  • • JAW PRESSURE: 40 BAR
  • • 7 JAW PRESSURE: 40 BAR
Swan Bath Transfer Machine
8 STATIONS HYDRAULIC TRANSFER MACHINE

Machines can be revised according to customer requests and needs.

  • • NUMBER OF LATHE UNITS: 8
  • • NUMBER OF THREADING UNITS: 2
  • • NUMBER OF SLIDE LATHE UNITS: 4
  • • NUMBER OF SLIDING DENTAL UNITS: 2
  • • CHIP EXTRACTION CONVEYOR: YES
  • • ENGINE POWER: 42kW
  • • PROCESSING TIME: 10 sec
  • • MACHINE WEIGHT: 6 TONS
  • • HYDRAULIC PRESSURE: 60 BAR
  • • GEAR PRESSURE: 40 BAR
  • • JAW PRESSURE: 40 BAR
  • • 7 JAW PRESSURE: 40 BAR

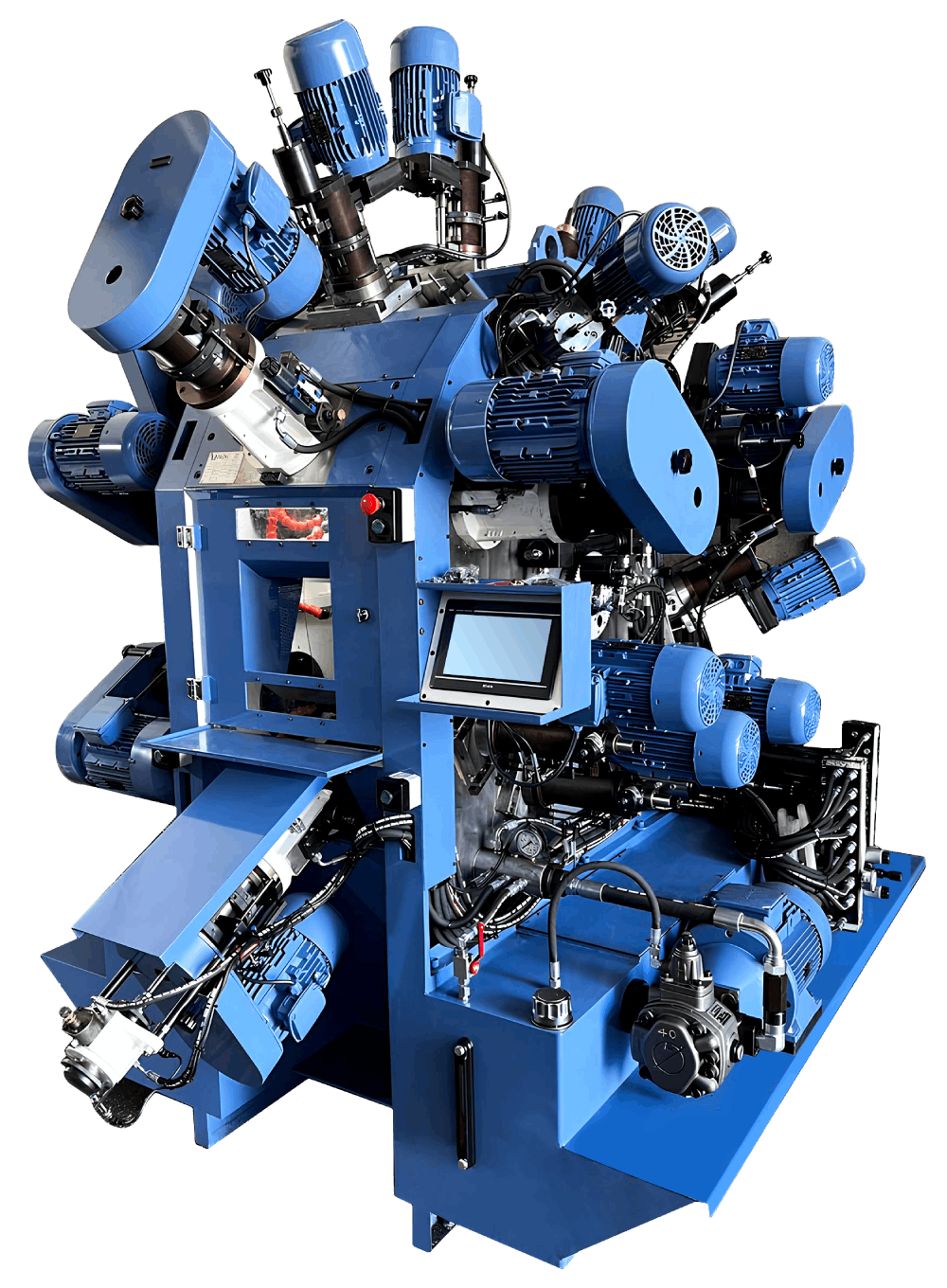

12 Stations Hydraulic Transfer Machine
12 STATIONS HYDRAULIC GRANSFER MACHINE

Machines can be revised according to customer requests and needs.

  • • NUMBER OF LATHE UNITS : 16
  • • NUMBER OF SCREW UNITS : 5
  • • NUMBER OF SLIDE LATHE UNITS : 1
  • • NUMBER OF SLIDE SCREW UNITS : 1
  • • NUMBER OF GROOVING UNIT : 1
  • • CHIP CONVEYOR : YES
  • • ELECTRIC MOTORS POWER : 49 kW
  • • PROCESSING TIME : 8 sn
  • • MACHINE WEIGHT : 6,5 TON
  • • HYDRAULIC PRESSURE : 60 BAR
  • • GEAR PRESSURE : 40 BAR
  • • JAW PRESSURE : 40 BAR
  • • 7 JAW PRESSURE : 40 BAR

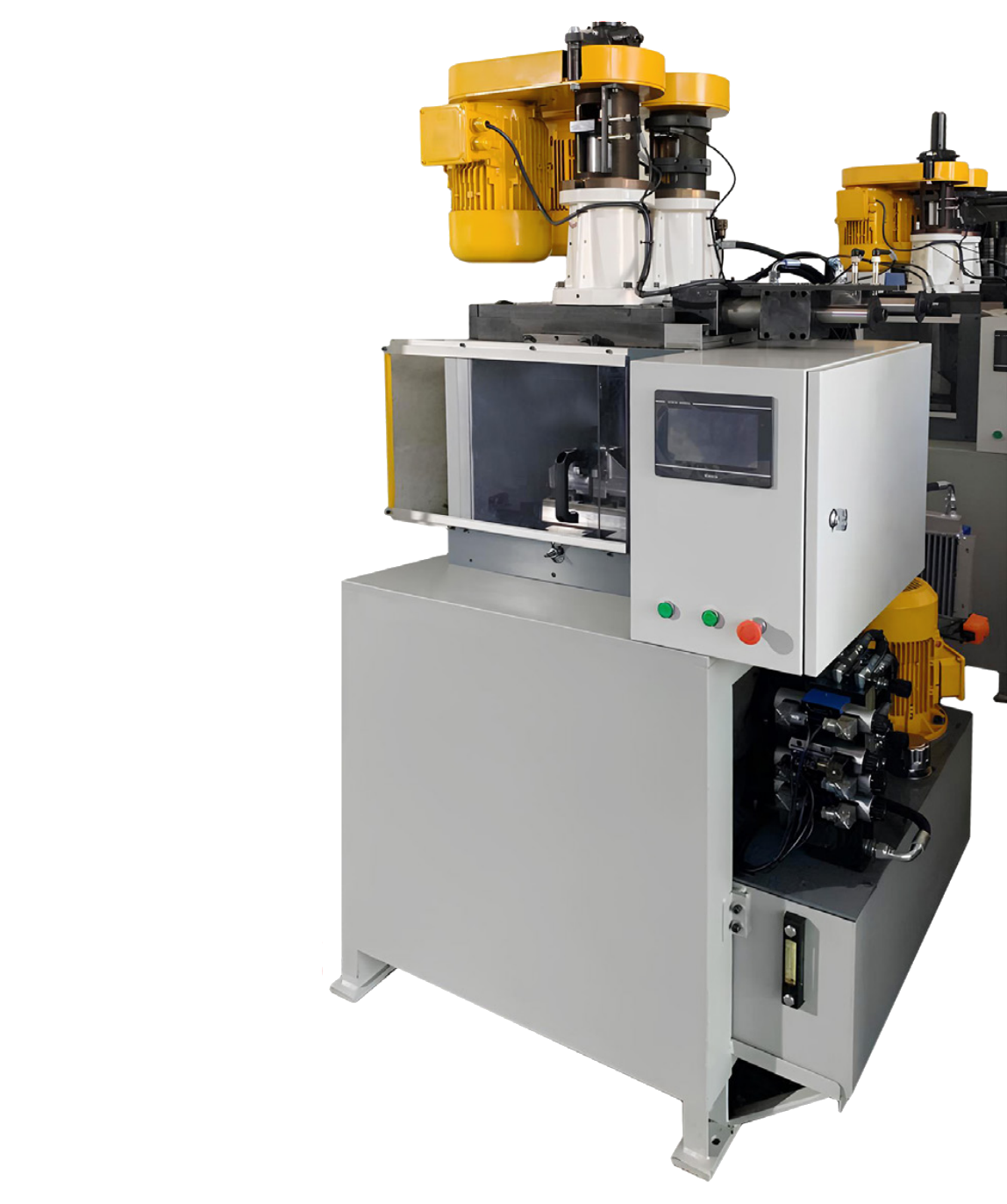

Desktop Hydraulic Transfer Machine
DESKTOP HYDRAULIC TRANSFER MACHINE

Machines can be revised according to customer requests and needs.

  • • The frame of our machine is made of 40mm thick ST52 quality material.
  • • Hull Sawdust Bor Oil Boat Group: The bottom sheet is made of ST52 quality material by welding together 8mm side sheets and 6mm thick side sheets.
  • • A 14cc gear pump is used in our hydraulic desktop machine.
  • • 140 Lt filter is used in our hydraulic desktop machine.
  • • In our hydraulic desktop machine, oil flow is provided by hydraulic hoses.
  • • The registration group and jaw system are manufactured from 4140 steel group material.
  • • The tool holder is in our own production and is made of 1040 manufacturing steel material.
